102x76x3mm Grade 14 Satin Stainless Steel Anti-Ligature Hinge
Grade 14 (160 Kg Total Door Mass)
CE 2812, UKCA 1121, Certifire CF336
102x76x3mm
12 Gauge Countersunk
£0.00
Description

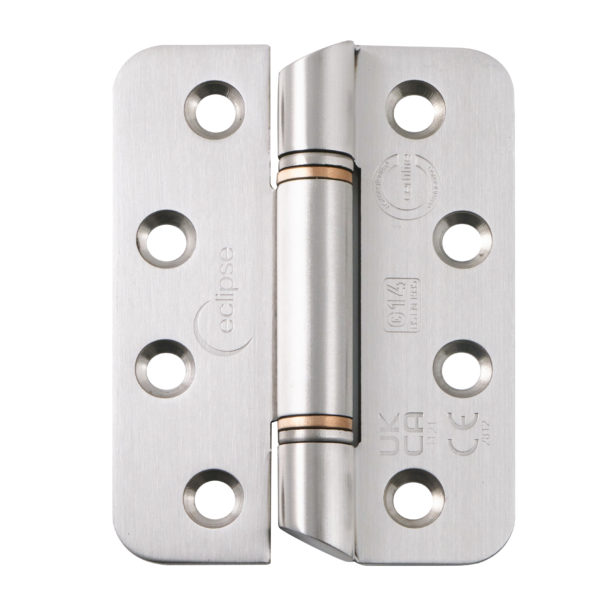

Eclipse Stainless Steel Thrust Bearing Hinge
Manufactured With 10mm Radius Corners
Grade 14 (160 Kg Total Door Mass)
CE 2812, UKCA 1121, Certifire CF336
BS EN1935 Performance Tested 200,000 Cycles To Grade 14
BS EN1634 Fire Tested FD30, 60, 90, 120 Minute Timber Door. FD240 Minute Steel Door
102x76x3mm
12 Gauge Countersunk
Supplied With 12×1.1/2″ Pozi Drive 3/4″ Threaded Screws
Specification
| Finish | SSS |
|---|---|
| Pack Quantity | 1 Pair |
| Base Material | Stainless steel |
| Pre Pack | No |
| Size | 102x76x3mm |
| Fixings | yes |
| Bearing Type | thrust bearing |
| BSEN 1935 Grade | 14 |
