Grade 14 Concealed Bearing Hinge
Click Here To Download Data Sheet

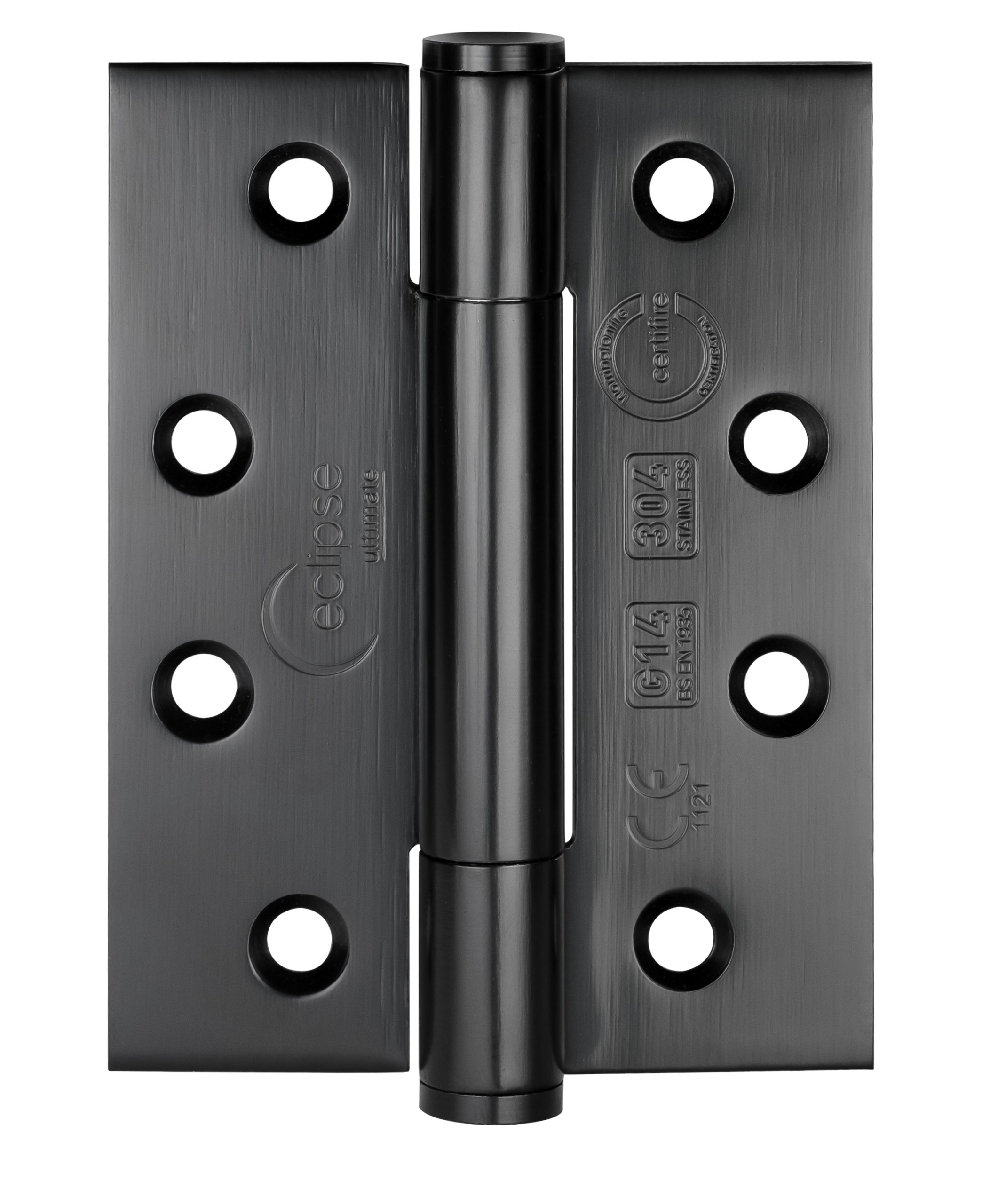

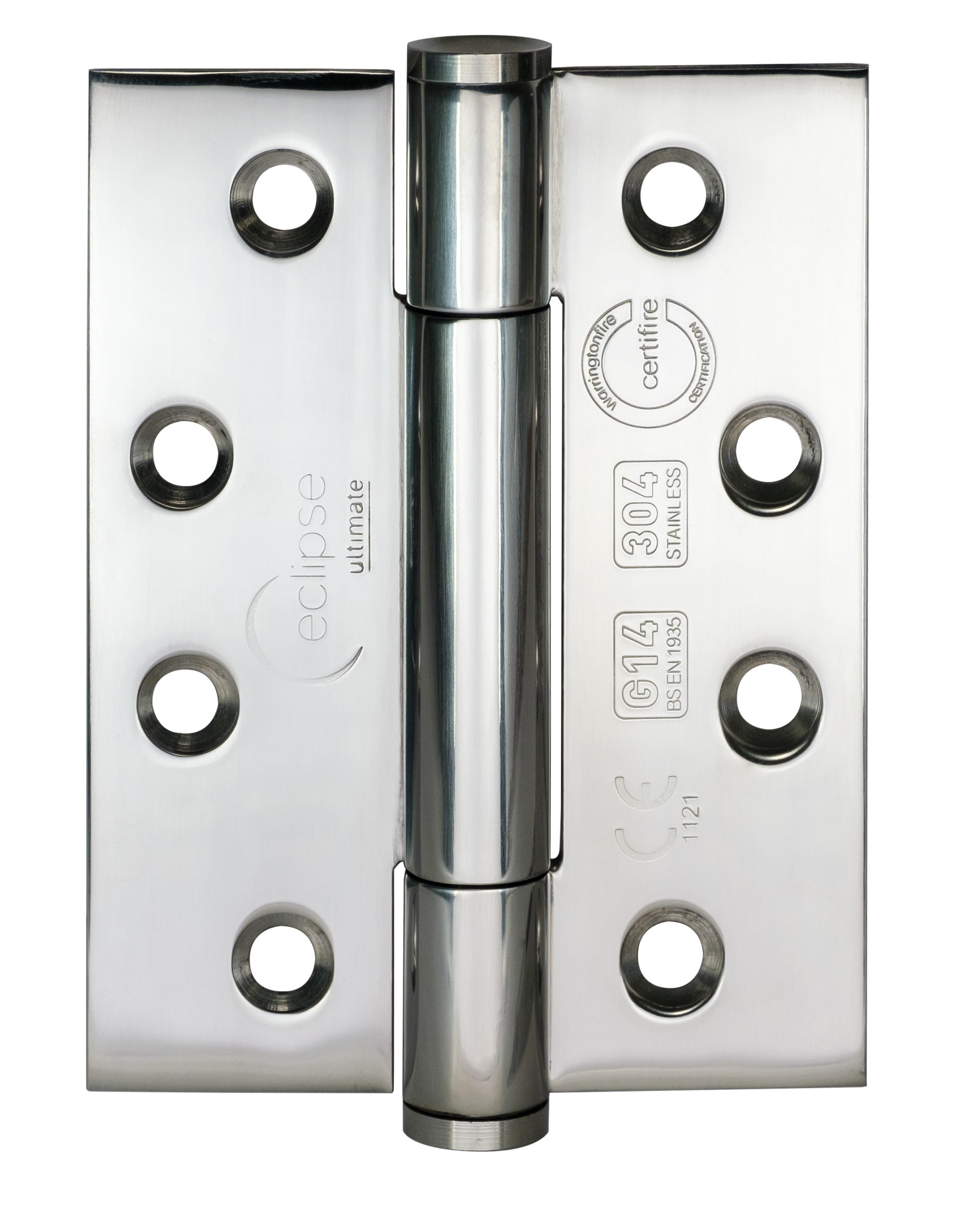

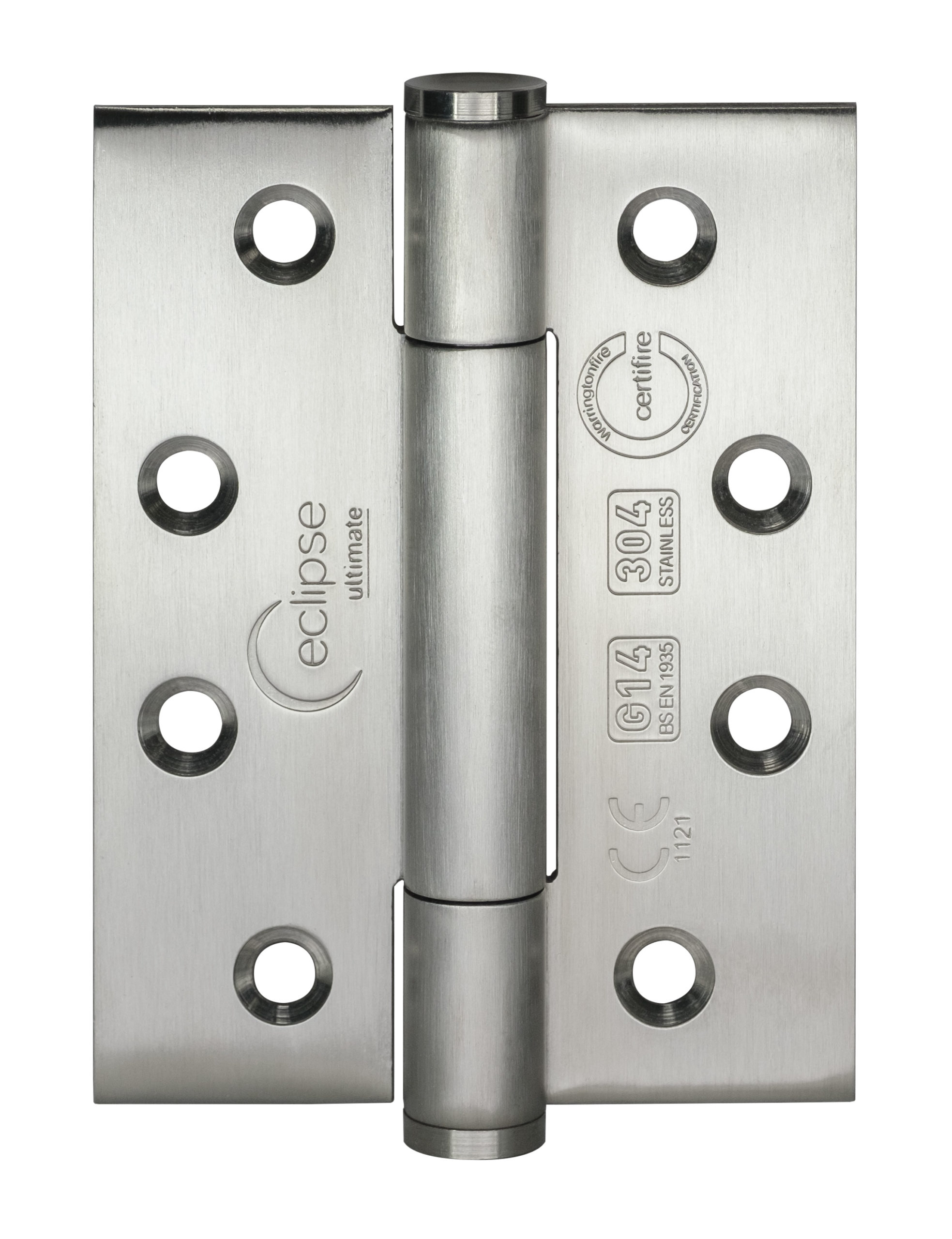

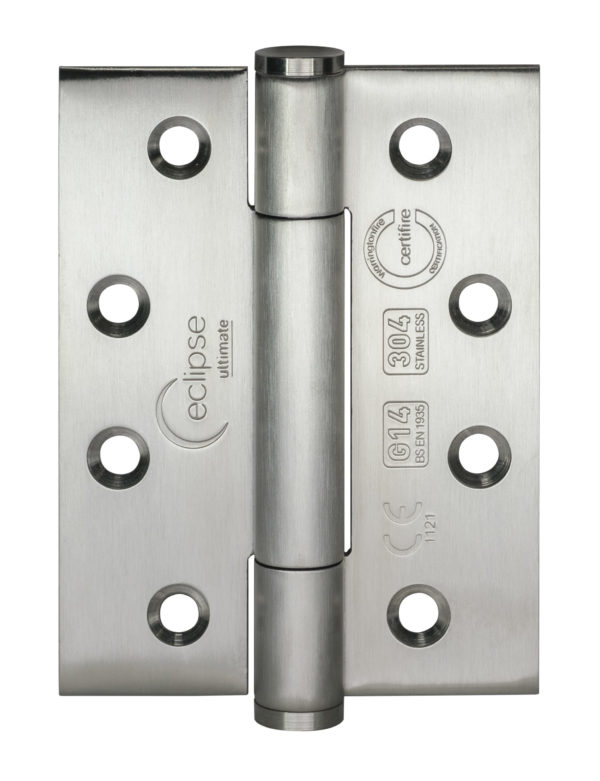

Available in 3 Finishes – Satin Stainless, Polished Stainless & Matt Black.
Grade 14 (160 Kg Total Door Mass)
CE 1121, UKCA 2812, Certifire CF336
BS EN1634 Fire Tested FD30, 60, 90, 120 Minute Timber Door. FD240 Minute Steel Door
Size – 102x76x3mm
£0.00
Description
Eclipse Stainless Steel Concealed Bearing Hinge
Grade 14 (160 Kg Total Door Mass)
SUS 304 Material Stainless Steel
CE 1121, UKCA 2812, Certifire CF336
BS EN1935 Performance Tested 200,000 Cycles To Grade 14
BS EN1634 Fire Tested FD30, 60, 90, 120 Minute Timber Door. FD240 Minute Steel Door
102x76x3mm
10 Guage Countersunk
Supplied With 10×1.1/4″ Fully Threaded Screws
Supplied As A Pack Of 2
Specification
| Finish | Matt Black, Polished Stainless Steel, Satin Stainless Steel |
|---|---|
| Pack Quantity | 2 pack |
| Grade | Grade 14 (160 kg) |
| Size | 102x76x3mm |
| Base Material | SUS 304 stainless steel |
